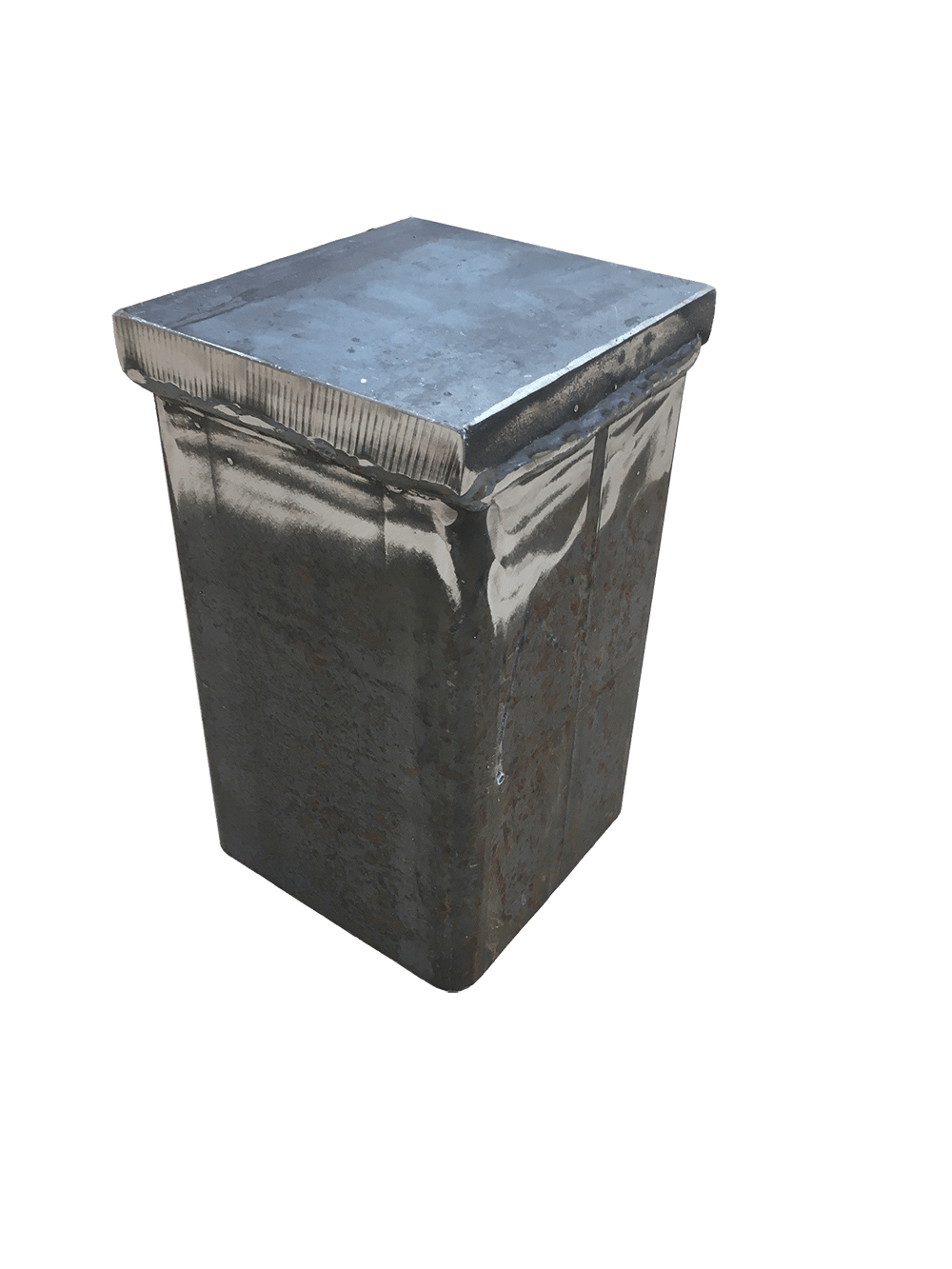

A 4x4 Post Driving Cap with a metal, rectangular form and fitted lid, showing a slightly weathered surface, isolated on a white background.

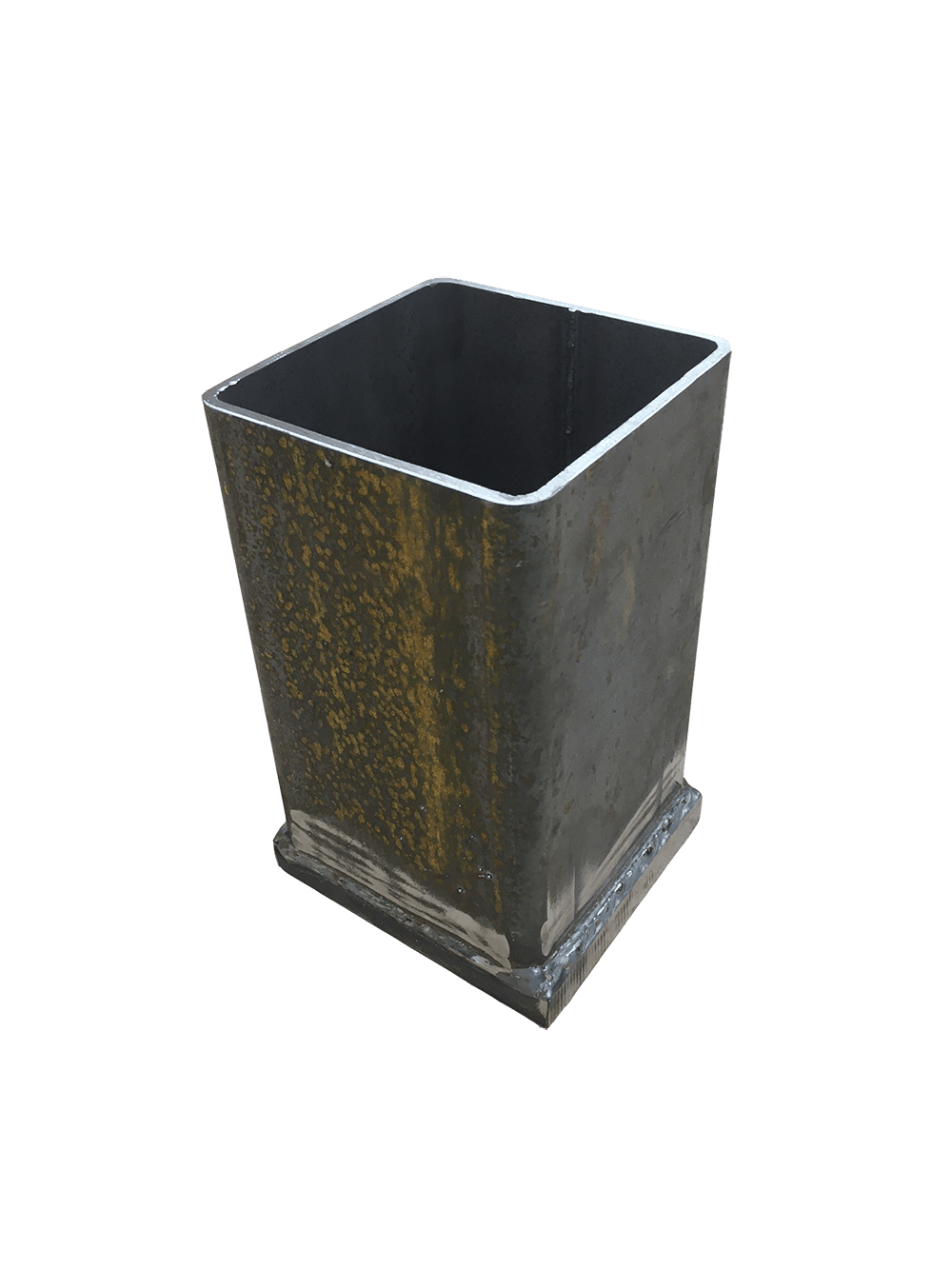

The 4x4 Post Driving Cap is a square, open-top metal tool with a weathered finish and solid base, shown on a white background.

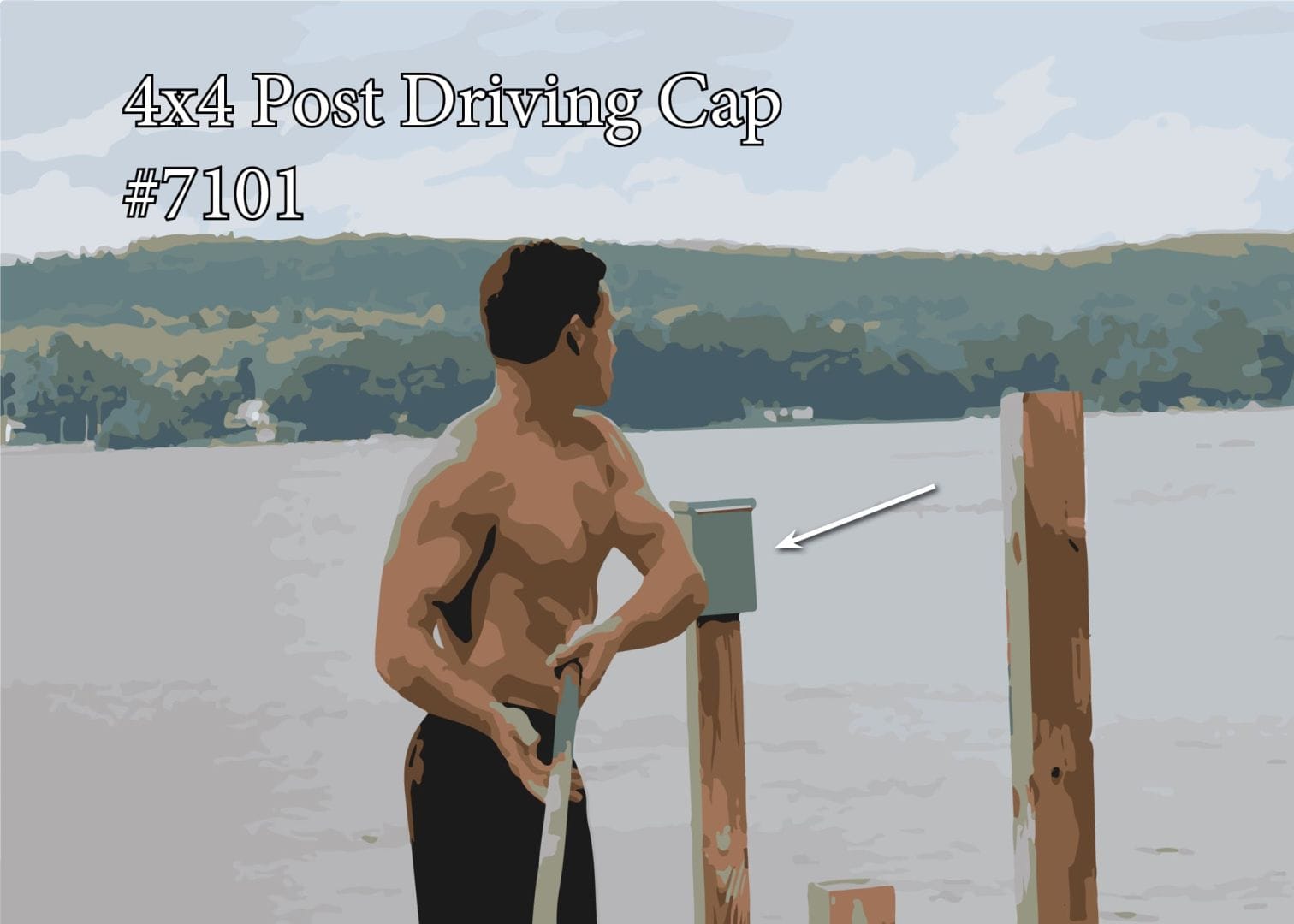

A shirtless man stands by water at Great Northern Docks, holding a post and looking at the 4x4 Post Driving Cap. Hills are visible in the background. Text: 4x4 Post Driving Cap.
A 4x4 Post Driving Cap with a metal, rectangular form and fitted lid, showing a slightly weathered surface, isolated on a white background.
The 4x4 Post Driving Cap is a square, open-top metal tool with a weathered finish and solid base, shown on a white background.
A shirtless man stands by water at Great Northern Docks, holding a post and looking at the 4x4 Post Driving Cap. Hills are visible in the background. Text: 4x4 Post Driving Cap.

4×4 Post Driving Cap

The 4×4 post driving cap protects your post tops while you drive legs into the lake bottom. Set it over the post, swing a short-handle sledge, and the cap takes the beating instead of the wood. It’s a wear part by design. When it’s spent, you replace the cap, not the post.

SKU: 7101

$118.00

- +

Heavy Steel Construction

A 3/4" thick steel striking face and a 3/16" wall on the sleeve absorb sledgehammer blows, so the force never reaches the post.

Fits Rough-Cut 4x4s

5"x5"outer tube, 4.5"x4.5" inner dimension. It drops over a rough-cut 4x4 without modification

A Wear Part, On Purpose

The cap takes the impact so the post doesn't. When the striking face wears down, you replace the cap, which is a lot cheaper than pulling and replacing a driven post.

Pro-Tip

Sharpen the post bottom and run a garden hose at the base while you drive. The water washes soil away as you go, so the post sets with less resistance.

Additional information

Weight 14 lbs
Dimensions 12 × 9 × 6 in

The 4x4 post driving cap is made of steel with a 3/4-inch-thick striking face and a 3/16-inch sleeve wall. Its outer dimensions are 5 by 5 inches, and its inner dimensions are 4.5 by 4.5 inches. It is sized to fit over most rough-cut 4x4 posts and weighs approximately 14 pounds.

Inspect the cap before each installation season and periodically during use. Replace it if the striking face or sleeve shows significant cracking, bending, or deformation that could prevent it from sitting securely on the post or distributing impact evenly.

Keep the cap dry while it is in storage. No other routine maintenance is required.

Request a Free Quote

Tell us about your project and we'll get back to you within one business day — usually sooner.

1Contact
2Your Project
3Your Waterfront
4Final Details
This field is for validation purposes and should be left unchanged.

Your Info

By entering your email, you are consenting to receive marketing and service-related communications from us. You can unsubscribe at any time. See our Privacy Policy for more information.

  • 47 Years in Business
  • Made in Maine
  • Free Quotes, No Obligations
Prefer to talk? Call us at +1 (207) 693-3770 Mon–Fri, 8:30am–5:00pm

See What Our Customers Say

...the entire experience was professional but also stress-free and fun. Best of all, we got the dock of our dreams...

View Full Testimonial

From Destin’s welcoming greeting when we entered the store, through the dock design process, delivery and installation by Tino to the final product… the entire experience was professional but also stress-free and fun. Best of all, we got the dock of our dreams.

Rebecca Poma
Maine
Rebecca Poma
Maine

...LOVE THE PRODUCT, super high quality! Shipping to Alabama was great! Love my "Great Northern Dock" stairs down here in the south!

View Full Testimonial

I worked with Gretta ordering the dock stairs descending into the water. Since I could not see the product, I was a little nervous ordering on my own. Gretta helped answer all my questions, and helped me figure out the best system for my situation! I don’t think I would have purchased had she not been such a great help. LOVE THE PRODUCT, super high quality! Shipping to Alabama was great! Love my “Great Northern Dock” stairs down here in the south!

Carol Smyser
Alabama
Carol Smyser
Alabama

...Their product is unmatched in Quality, Longevity and Look. There is no application or shoreline their docks can't accommodate. Not only are Great...

View Full Testimonial

Great Northern Docks is a first-class company with the best product on the market. As one of the larger dock installation companies in southern Maine I have worked directly with Great Northern for years. Their product is unmatched in Quality, Longevity and Look. There is no application or shoreline their docks can’t accommodate. Not only are Great Northern Docks in a class by themselves they are also the most installer friendly dock systems on the market. My dock business has been exclusively with Great Northern for years and they will always be the only company I will work with. From start to finish you will never be disappointed investing in a Great Northern dock system.

Shoreline Solutions LLC
Maine
Shoreline Solutions LLC
Maine

I just wanted to thank you for your help.  I LOVE my dock stairs! I was nervous to order a big ticket item half the country away but your kind attitude and help

Read Testimonial

I just wanted to thank you for your help.  I LOVE my dock stairs! I was nervous to order a big ticket item half the country away but your kind attitude and helpful answers gave me a sense of security. I just wanted to thank you for your help.  So, all the way from Minnesota,  I send a shout out: “Yay for Seth! ”Thanks again,

Linda
Minnesota
Linda
Minnesota

I purchased a new dock this season from Great Northern Docks and was extremely happy with the quality and service. From the initial site review, where the team

View Full Testimonial

I purchased a new dock this season from Great Northern Docks and was extremely happy with the quality and service. From the initial site review, where the team came out and created options on paper, to the prompt delivery, everything went smoothly. When my installers were short some pipe, I called and GND quickly cut a 20’ pipe into two pieces and had it ready to go within the hour for no extra charge. They also gave me a refund for a few extra pieces that I had left over after installation.The dock itself is great looking, well constructed, and very functional for fun summer days on the lake; whether boating or just relaxing on the dock. Thank you GND!

Eric Miller
Maine
Eric Miller
Maine

Lindsay and the team at Great Northern Docks provided excellent support and guidance in the entire process of selecting the appropriate dock

View Full Testimonial

Lindsay and the team at Great Northern Docks provided excellent support and guidance in the entire process of selecting the appropriate dock that meets our needs and budget. Assembly was straightforward and the quality of the material as well as the craftsmanship was excellent. My wife and I are looking forward to adding additional accessories next year.

Christopher Cortez
Maine
Christopher Cortez
Maine
Black and white compass rose with eight main points and decorative outer rings, featuring a fleur-de-lis at north—perfect for accenting Great Northern Docks or Maine Docks.

Complete Your Dock
with These Essentials

Find the perfect accessories and parts to finish the job right.
  • Leveling Winch with black handle, metal gears, and strap with hook—perfect for lifting heavy loads on Great Northern or aluminum docks.

    Leveling Winch

    $204.25 9003    Shop NowAdd to cart
  • The Jack Pole Extension is a vertical aluminum tube with evenly spaced round holes, shown upright against a black background.

    Jack Pole Extension

    $55.25 4000    Shop NowAdd to cart
  • The Pipe Puller is a silver metal antenna mast with a mounting bracket and a gray plastic cap on one end, shown on a white background.

    Pipe Puller

    $92.50 4154    Shop NowAdd to cart
  • A man in a t-shirt and shorts uses Pipe Driving Caps on a Great Northern Docks wooden dock by a lake, surrounded by trees and tall grass on a cloudy day.

    Pipe Driving Caps

    Price range: $36.50 through $118.00     Shop Now

    • FAQ

    Do I need a different cap for pipe legs?

    Yes. This cap is sized for 4×4 wood posts. If you’re driving galvanized pipe legs instead, see our dock pipe driving caps, which are sized for pipe.

    How long does a driving cap last?

    It depends on how many posts you’re setting and how hard the bottom is. This is a wear part by design. Inspect the striking face after each use, and replace the cap when you see significant deformation on the top or the sleeve.

    What is a 4x4 post driving cap used for?

    It sits over the top of a 4×4 post and gives you a flat steel striking surface for a sledgehammer. It keeps the post top from splitting or mushrooming while you drive the leg into the lake bottom, which is why it’s the post driving tool most builders reach for first.

    Will this fit a rough-cut 4x4?

    Yes. The inner dimension is 4.5″x4.5″, which fits a rough-cut 4×4. Standard dimensional lumber, which measures closer to 3.5″x3.5″, also fits with some play in the sleeve.

    What else do I need to drive dock posts?

    A short-handle sledgehammer, a sharpened post, and a garden hose to wash soil from the base while driving. For the hardware that follows, post brackets and brace clamps are in the Dock Parts Fixed Legs section.

    The Right Tool for Setting Dock Posts

    Driving 4×4 dock posts into a lake bottom by hand requires a sledgehammer, a properly prepared post, and a strong surface to absorb each strike. A 4×4 post driving cap fits over the top of the post and provides a durable striking surface during installation.

    Striking an uncovered wooden post can split or crush the wood and cause the top to mushroom. This damage will make it difficult to install post brackets and other dock hardware. The driving cap helps distribute the force of each blow across the post top, reducing direct damage to the wood.

    Before installation, sharpen the bottom of the post and position it where the dock leg will be set. Place the cap securely over the post and drive it gradually, checking frequently to make sure the post remains plumb. Where bottom conditions allow, running water from a garden hose around the base may help loosen sand or soil and reduce resistance.

    Take extra care in rocky, hard, or compacted lake bottoms. Check the post between strikes and avoid continuing if it begins to split, twist, or move out of alignment.

    The post driving cap should also be inspected throughout the installation process. A heavily worn or deformed striking surface may distribute force unevenly and should be replaced before further use.For the rest of your fixed-leg dock system, explore our Stationary Dock Parts for post brackets, brace clamps, bracing, post feet, and other installation hardware. Our Dock Plans can also help show how the individual components fit into a complete dock build.
